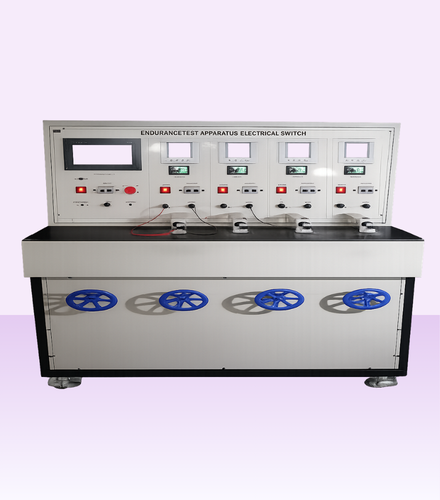

Endurance Electronic Switchgear Testing Apparatus
Mechanical & Electrical Endurance Testing System
Sensotech Instruments Inc. manufactures a highly advanced Endurance Electronic Switchgear Testing Apparatus designed for evaluating the mechanical and electrical durability of switchgear devices under continuous operating conditions. The equipment is specially engineered for testing circuit breakers, switches, contactors, relays, isolators, and other switching devices according to international testing standards including IEC 60947. The testing system consists of a PLC-based control unit that allows precise programming of operating cycles, test duration, operating speed, and customized testing parameters for automatic endurance testing. A precision mechanical or pneumatic actuator system performs continuous opening and closing operations on the switchgear device to simulate actual field conditions and long-term operational usage. The apparatus is equipped with a stable power supply system capable of providing the required voltage and current with selectable resistive and inductive loads including different power factor conditions such as 0.5 to 0.9 power factor. The integrated digital monitoring system includes voltmeters, ammeters, power factor meters, cycle counters, and hour meters for accurate recording of electrical performance and total operating duration during testing. The complete test circuit includes the switchgear device, power supply, load bank, monitoring instruments, and control systems to reproduce real-world electrical operating conditions. The apparatus is designed to evaluate mechanical endurance by checking operating mechanisms, springs, linkages, and moving parts for wear and reliability after repeated operations. It also performs electrical endurance testing to assess contact erosion, arcing effects, overheating, and current carrying capability while ensuring reliable switching performance. The system helps verify contact integrity by ensuring that electrical contacts can safely make, carry, and break current without excessive damage or operational failure. Widely used in electrical manufacturing industries, switchgear industries, testing laboratories, quality assurance departments, R&D centers, and certification laboratories, this apparatus ensures accurate endurance evaluation and product compliance with international standards.
Technical Features
- PLC-based programmable control system for automatic endurance testing cycles.
- Mechanical or pneumatic actuator system for repeated opening and closing operations.
- Selectable resistive and inductive load conditions.
- Supports different power factor testing from approximately 0.5 to 0.9 PF.
- Integrated digital voltmeter, ammeter, power factor meter, and hour meter.
- Automatic cycle counting and test parameter monitoring system.
Testing Functions
- Performs mechanical endurance testing of switchgear operating mechanisms.
- Evaluates wear of springs, linkages, and moving components after repeated operations.
- Conducts electrical endurance testing under rated voltage and current conditions.
- Assesses contact erosion, arcing, overheating, and switching performance.
- Verifies reliable current carrying and breaking capability of contacts.
Applications & Standards
- Designed according to IEC 60947 and related international testing standards.
- Suitable for testing circuit breakers, contactors, switches, relays, and isolators.
- Widely used in electrical manufacturing and switchgear industries.
- Ideal for testing laboratories, R&D centers, and quality control departments.
- Helps ensure product reliability, operational safety, and compliance certification.
