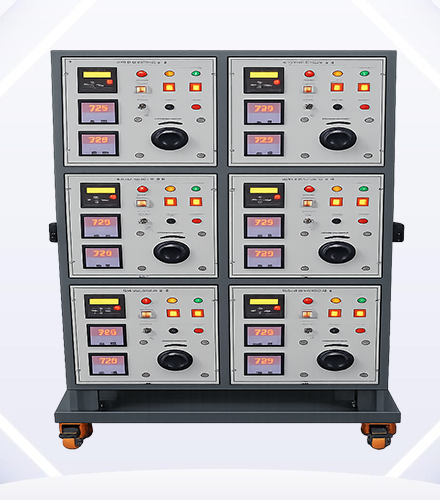

Wall Fan Electrical Endurance Test Apparatus
Oscillation & Electrical Endurance Testing System
Sensotech Instruments Inc. manufactures a highly reliable Wall Fan Electrical Endurance Test Apparatus designed for testing the oscillation endurance, electrical performance, and operational durability of wall-mounted fans according to Clause 23.3 of IS 302-2-80:2017. The equipment is specially developed for conducting continuous oscillation cycle testing to simulate long-term operating conditions and evaluate the mechanical and electrical reliability of wall-mounted fans. The apparatus is provided with a strong MS stand-type adjustable fixture for secure mounting of different wall fan models. The fixture arrangement allows adjustment of fan position and oscillation angle according to various fan designs and testing requirements. The testing system includes a digital voltmeter with variac control for providing adjustable voltage supply from 0–270 V AC with a current capacity of 5 Amp, enabling accurate electrical endurance testing. A precision digital preset counter meter is integrated into the system for automatic stopping of machine operation after achieving the programmed cycle count value. The apparatus is equipped with two proximity metal detector sensors with adjustable positioning for accurate detection and counting of fan oscillation sweep cycles. The measuring system provides voltage measurement from 0–300 V AC with least count of 0.1 V AC, and current measurement from 0–5 Amp AC with least count of 0.1 Amp AC. The preset counter system supports counting range from 0–999999 counts with least count of 1 count for accurate endurance cycle monitoring. For safety and testing reliability, the control system automatically stops the machine operation and counting process in the event of short circuit or open circuit conditions in the fan under test. Additional controls, indicators, and safety protection features are provided for easy handling, safe operation, and reliable endurance testing performance. The Wall Fan Electrical Endurance Test Apparatus is widely used in fan manufacturing industries, electrical appliance industries, testing laboratories, quality assurance departments, and R&D centers for product durability verification and compliance testing.
Technical Features
- Designed according to Clause 23.3 of IS 302-2-80:2017 standard.
- MS stand-type adjustable fixture for wall fan mounting.
- Adjustable oscillation angle arrangement for different fan models.
- Digital voltmeter with variac providing adjustable voltage from 0–270 V AC.
- Current capacity up to 5 Amp for endurance testing applications.
- Two proximity metal detector sensors for accurate oscillation cycle detection.
Testing Functions
- Performs oscillation endurance cycle testing for wall-mounted fans.
- Digital preset counter meter automatically stops operation after reaching set cycle count.
- Voltage measurement range: 0–300 V AC with least count 0.1 V AC.
- Current measurement range: 0–5 Amp AC with least count 0.1 Amp AC.
- Preset counter range: 0–999999 counts with least count 1 count.
- Machine automatically stops during short circuit or open circuit conditions.
Applications & Standards
- Suitable for wall fan endurance and oscillation performance testing.
- Widely used in fan manufacturing and electrical appliance industries.
- Ideal for testing laboratories, R&D centers, and quality assurance departments.
- Helps evaluate long-term operational reliability and product durability.
- Includes necessary controls, indicators, and safety protection systems for safe and easy operation.
