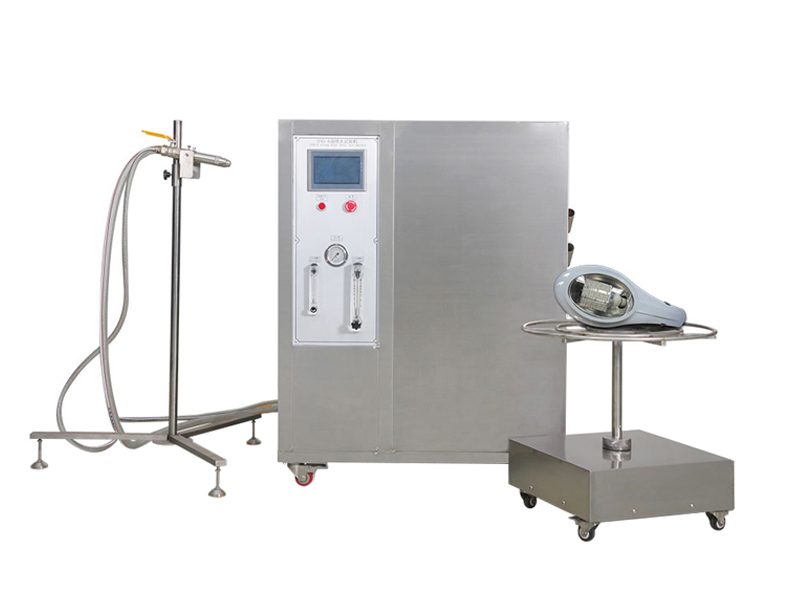

IPX5 & IPX6 Water Jet Test Apparatus with Touch Screen - Floor Standing
Water Jet Ingress Protection Testing System
Sensotech Instruments Inc. manufactures a high-performance IPX5 & IPX6 Water Jet Test Apparatus designed for evaluating the waterproof protection of electrical and electronic products according to IEC 60529 ingress protection standards. The system is specially developed for conducting IPX5 water jet testing and IPX6 powerful water jet testing under controlled testing conditions. During the IPX5 test, the specimen is exposed to water jets through a 6.3 mm nozzle, while the IPX6 test uses a 12.5 mm nozzle for high-pressure powerful water jet testing. The apparatus is designed as a floor-standing automatic testing unit equipped with PLC-based control and touch screen HMI operation for accurate and user-friendly testing. The equipment features high-pressure water circulation, adjustable water pressure, digital flow monitoring, stainless steel construction, programmable test timing, and a motorized rotating turntable for complete multi-directional water jet exposure. Advanced models are available with automatic jet control, water filtration systems, variable speed rotation, and programmable testing cycles for enhanced testing performance. The IPX5 & IPX6 Water Jet Test Apparatus is widely used in electronics industries, automotive industries, appliance manufacturing, lighting product testing, testing laboratories, research centers, and quality assurance departments for waterproof compliance verification.
Integrated Design and Construction
Sensotech Instruments Inc. manufactures box-type waterproof testing equipment featuring an integrated one-piece testing system constructed from premium 304 stainless steel for superior corrosion resistance and long service life. 304 stainless steel for superior corrosion resistance and long service life.
At the base of the system, a motorized rotating turntable securely holds the specimen and rotates automatically to ensure uniform exposure to water jets from all directions. The unit can also be equipped with an optional waterproof power socket for “power-on” testing applications.

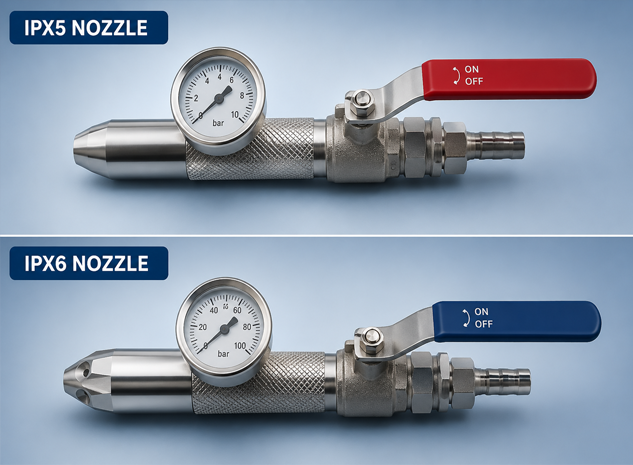

IPX5 & IPX6 Nozzle
A precision-engineered spray port is positioned on the side of the chamber and connected to a water circulation system for direct jet spray testing on the specimen. To improve efficiency and sustainability, the chamber includes a water collection tank with filtration and closed-loop water recycling system for continuous testing operation.

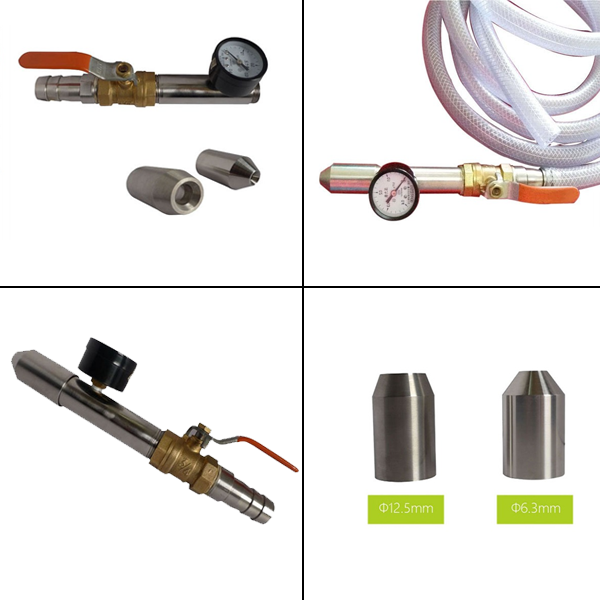

Dia. 6.3 mm & 12.5 mm nozzles
Precision Nozzles for Versatile Testing
The water jet is delivered through precision-engineered nozzles manufactured from high-grade metal for accurate and reliable waterproof testing.
To meet different ingress protection testing requirements, the equipment is supplied with multiple nozzle configurations.
- 6.3 mm Diameter Nozzle: Designed for IPX5 water jet testing.
- 12.5 mm Diameter Nozzle: Designed for high-flow IPX6 powerful water jet testing.
Users can quickly switch between nozzles according to testing requirements. The equipment also supports fixed nozzle positioning or automatic oscillating movement to ensure complete water spray coverage from all required directions.
Advanced PLC Control and Intuitive HMI
For smooth and efficient operation, the system is equipped with a 7-inch PLC-based touch screen interface for easy parameter setting and monitoring.
The user-friendly HMI allows operators to select the required IP rating, testing duration, water flow parameters, and test sequence directly from the screen.
Once initiated, the apparatus performs the programmed test cycle automatically while displaying real-time testing data, operational status, and safety alerts for reliable and unattended operation.

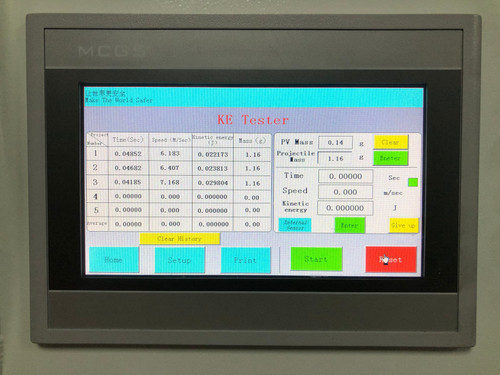

Touch screen
- Customizable Chamber Sizes: Our IPX5/6/K chambers are available in various sizes, with custom dimensions available to accommodate unique specimen requirements.
- Corrosion-Resistant 304 Stainless Steel: Built with a premium 304 stainless steel interior, ensuring long-term durability in high-humidity testing environments.
- Sustainable Water Recycling: Closed-loop water recycling system with an internal filter protects pumps and nozzles from debris.
- Smart PLC Touchscreen Interface: Easily configure test ratings and durations through the 7-inch touchscreen interface with real-time monitoring.
- 360° Automated Testing: Automatic rotating turntable ensures high-pressure water jets reach every angle of the test specimen.
- Support for Live Electrical Samples: Optional internal waterproof power supply system allows powered-on testing during operation.
- Superior Visibility: Large transparent observation window enables easy monitoring of water ingress and testing performance.
- Advanced Safety Features: Built-in protection against electrical leakage, short circuits, overloads, and abnormal conditions.
- Portable Laboratory Solution: Heavy-duty caster wheels allow smooth movement of the equipment within the testing facility.
Main Technical Specifications
| Model | AT-1005C | AT-1005C-600 | AT-1005C-800 | AT-1005C-1000 | AT-1005C-1180 |
|---|---|---|---|---|---|
| Equipment Type | Open-type | Box-type with an enclosed chamber | |||
| Inside Chamber Dimensions | / |
(W) 600 × (D) 600 × (H) 600 mm |
(W) 800 × (D) 800 × (H) 800 mm |
(W) 1000 × (D) 1000 × (H) 1000 mm |
(W) 1180 × (D) 1180 × (H) 1180 mm |
| Overall Dimensions |
(W) 1100 × (D) 900 × (H) 1300 mm |
(W) 3550 × (D) 1050 × (H) 1600 mm |
(W) 3550 × (D) 1050 × (H) 1600 mm |
(W) 4050 × (D) 1250 × (H) 1850 mm |
(W) 4350 × (D) 1400 × (H) 1900 mm |
| Turntable Diameter | Dia. 600 mm | Dia. 400 mm | Dia. 600 mm | Dia. 600 mm | Dia. 800 mm |
| Turntable Height | Fixed | ||||
| Nozzle Opening Size | Dia. 6.3 mm (IPX5 & IPX6K), Dia. 12.5 mm (IPX6) | ||||
| Water Flow & Pressure Required |
IPX5:
12.5 L/min ± 5%,
Pressure approx. 30 kPa
IPX6: 100 L/min ± 5%, Pressure approx. 100 kPa IPX6K: 75 L/min ± 5%, Pressure approx. 1000 kPa |
||||
| Water Jetting Distance | 2.5 ~ 3 meters | ||||
| Control Mode | PLC + 7-inch touch screen | ||||
| Feature | Allows energized samples during the test | ||||
Comparison on Test Conditions
| Test Item | IPX5 | IPX6 | IPX6K |
|---|---|---|---|
| Nozzle Internal Diameter | 6.3 mm | 12.5 mm | 6.3 mm |
| Water Pressure | Approx. 30 kPa | Approx. 100 kPa | Approx. 1000 kPa |
| Water Flow Rate | 12.5 l/min ± 5% | 100 l/min ± 5% | 75 l/min ± 5% |
| Exposure Time | 1 min/m², at least 3 min | 1 min/m², at least 3 min | At least 3 min |
| Distance from Nozzle to Enclosure Surface | 2.5 ~ 3 m | 2.5 ~ 3 m | 2.5 ~ 3 m |
