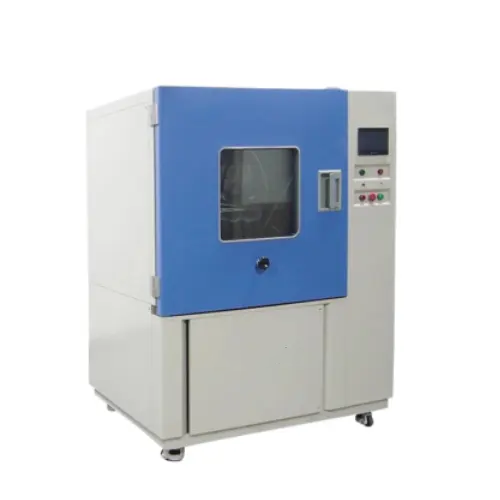

IPX9 & IPX9K High Pressure Hot Water Jet Test Apparatus with Touch Screen - Floor Standing
High Temperature & High Pressure Water Ingress Testing System
Sensotech Instruments Inc. manufactures a precision-engineered IPX9 & IPX9K Water Jet Test Apparatus designed for evaluating the resistance of electrical and electronic products against high-pressure and high-temperature water jets according to IEC 60529 and ISO 20653 waterproof testing standards. The system is specially developed for conducting IPX9 and IPX9K ingress protection tests under severe environmental and wash-down conditions. During testing, the specimen is exposed to high-temperature water jets delivered from multiple spray angles with controlled pressure and flow rate to simulate demanding cleaning environments. The apparatus is designed as a floor-standing automatic testing unit equipped with PLC-based control and touch screen HMI for accurate and user-friendly operation. The system includes a motorized rotating turntable, precision spray nozzles, adjustable water temperature control, programmable test timing, and stainless steel chamber construction for reliable waterproof testing performance. Advanced models are available with automatic nozzle positioning, high-pressure circulation systems, variable speed rotation, and programmable testing cycles for enhanced automation and testing efficiency. The IPX9 & IPX9K Water Jet Test Apparatus is widely used in automotive industries, electrical equipment testing, electronics manufacturing, appliance testing laboratories, research centers, certification laboratories, and quality assurance departments for waterproof compliance verification.
Technical Precision and Thermal Control
The spray system utilizes four fan-jet nozzles constructed from hardened HRC62 steel. Positioned on a single vertical plane at angles of 0°, 30°, 60°, and 90°, each nozzle is adjustable to maintain the precise required distance from the Device Under Test (DUT).
To ensure thermal accuracy, the reservoir integrates a PID-controlled heating element and temperature probes, maintaining water at a constant (80±5)°C. During operation, water is discharged at pressures between 8,000 and 10,000 kPa at programmed intervals, ensuring rigorous compliance with international standards.

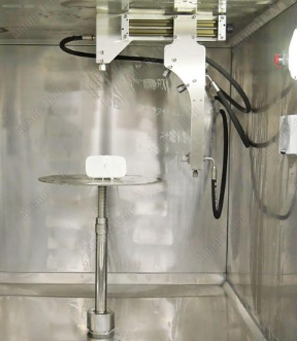

Spray test assemble
- Durable 304 Stainless Steel: The inner chamber and spray assembly are constructed with premium 304 stainless steel for maximum corrosion resistance and long service life.
- Tempered Glass Viewing Window: High-strength tempered glass door allows easy monitoring during waterproof testing.
- Smart PLC Touchscreen Control: Equipped with a 7-inch touchscreen and PLC module for parameter setting and real-time monitoring.
- Rapid Water Heating: High-speed heating system quickly reaches the required temperature for IPX9K high-pressure testing.
- Flexible Nozzle System: Four fan-jet nozzles are easily replaceable with adjustable spray distances and intervals.
- Customizable Rotating Turntable: Turntable shape, load capacity, and rotation speed can be customized according to testing requirements.
- Water-Saving Circulation System: Automatic water recycling system reduces water consumption and supports continuous operation.
- Advanced Safety Features: Built-in protection against overload, short circuits, water shortage, and overflow conditions.
- Live Product Testing: Designed for safe testing of energized samples during high-pressure water spray exposure.
Technical Specifications
| Model | AT-C1005FP-800 | AT-C1005FP-1000 | AT-C1005FO |
|---|---|---|---|
| Equipment type | Box-type with a chamber | Box-type with a chamber | Open type |
| Interior dimensions | (W) 800 x (D) 800 x (H) 800 mm | (W) 1000 x (D) 1000 x (H) 1000 mm | Turntable dia. 800 mm x height 700 mm |
| Overall dimensions | (W) 1250 x (D) 1000 x (H) 1755 mm | (W) 1450 x (D) 1230 x (H) 1820 mm | Control cabinet (W) 1420 x (D) 1150 x (H) 1300 mm, Host (W) 700 x (D) 950 x (H) 2900 mm |
| Spray angle | 0°, 30°, 60°, 90° | ||
| Number of nozzles | 4 | ||
| Distance between nozzles and the sample | 100 ~ 200 mm | ||
| Water flow rate | 14 ~ 16 L/min | ||
| Water temperature | Atmospheric temperature ~ 80 ± 5°C | ||
| Turntable rotation speed | 1 ~ 10 RPM adjustable | ||
| Test time | 30 seconds for each angle | ||
| Water pressure | 8000 ~ 10000 kPa | ||
| Water impact force | 0.9 ~ 1.2 N | ||
